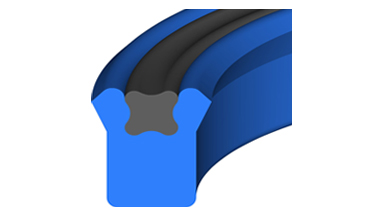

BACK-BEVELED LOADED U-CUP

These deep back-beveled loaded U-cups feature a urethane seal surface with low pressure energizer. They are taller than Square B loaded U-cups to increase resistance to deformation. Their energized seal offers low pressure capability with a back-beveled lip and film breaking capability. The deeper profile also improves extrusion resistance and stability. Deep loaded U-cups are commonly used in high duty cycle, mobile hydraulic, agricultural and general industrial applications.

Temperature range: -50°F to +250°F

Materials: Urethane or Hytrel® shell with Nitrile or Viton® expander

Max Pressure: 6000 psi

Max Velocity:3.2 ft/sec
